Choice of deck
Choose a full-steel or semi-steel deck for your weighbridge. Foundations, access ramps and an optional operator cabin can be included in your project quotation.
Sanik Weighing Systems · Sri Lanka
Weighbridges for your business.
Choose a standard 20T, 40T, 60T, 80T or 100T weighbridge, or request a custom configuration from 10T to 100T. All platforms are 3m wide, with full-steel or semi-steel decks and length options to suit your requirements.
Weighbridge systems10–100 tonnes
Full-steel & semi-steel decks
Computerised weighing
Installation & support
Standard configurations
Our standard weighbridge options.
Compare the capacity, platform size and number of load cells in each standard configuration. Need a different capacity or length? Explore our custom options below.
| Capacity | Platform size | Load cells |
|---|---|---|
| 20 T | 3 m × 7 mor3 m × 9 m | 4 |
| 40 T | 3 m × 15 m | 4 |
| 60 T | 3 m × 18 m | 4 |
| 80 T | 3 m × 18 m | 6 |
| 100 T | 3 m × 18 m | 8 |
The complete system
From the platform
to the printout.
Bring the weighing platform, electronics and operator workstation together in one system configured for your project.
Weighing & indication
Choose compression type load cells or double ended shear beam load cells. A digital LED weighing indicator, summing box and connecting cables complete the measurement system.
Computer & printing
A computer, printer and Windows-based weighbridge software support vehicle weighing, ticket printing and access to weighing records.
Standard load-cell quantities are listed in the table above. Your quotation confirms the selected load cell type, equipment models, computer specifications and civil-work scope. Custom load-cell quantities depend on the requested configuration.
Weighbridge software
Keep every load
on record.
Record first and second weighings, manage vehicle and customer information, and produce reports for your day-to-day operations. Software customisation can be discussed for your workflow.
Gross weight−Tare weight=Net weight
- Vehicle, customer & item recordsRegister vehicles, customers, customer locations and materials.
- First & second weighingCarry out weighing operations and view vehicles awaiting their second weighing.
- Printed weighing ticketsRecord the date, time, ticket number, vehicle number, material and gross, tare and net weights.
- Reports & Excel exportView records by date range, customer, vehicle or item, with user access controls.
Your project, step by step
Plan. Install. Start weighing.
We discuss your requirements and agree the equipment, site work and installation scope before the project begins.
- 01
Discuss your site
Share your location, vehicle types, required capacity and available space.
- 02
Confirm the scope
Agree on the platform size, deck type, foundations, ramps and whether an operator cabin is required.
- 03
Install the system
Coordinate the deck, weighing electronics, computer and software installation.
- 04
Arrange ongoing support
Confirm the handover, warranty coverage and preventive maintenance arrangements.
Before you enquire
A few useful answers.
Have a specific site or vehicle requirement? Include it in your quotation request.
Can I request a non-standard capacity or platform length?
Yes. Custom configurations range from 10T to 100T. Platform width is fixed at 3m, and the length is based on your requirements. Choose the custom option in the quotation form and enter the capacity and platform length you need.
Which load cell types are available?
You can request compression type load cells or double ended shear beam load cells. Select your preference in the quotation form. The number of load cells for our standard configurations is shown in the capacity table.
Which capacity and platform size should I choose?
Tell us the maximum total weight of the loaded vehicles, their length and the space available at your site. We will discuss these details with you before recommending a configuration.

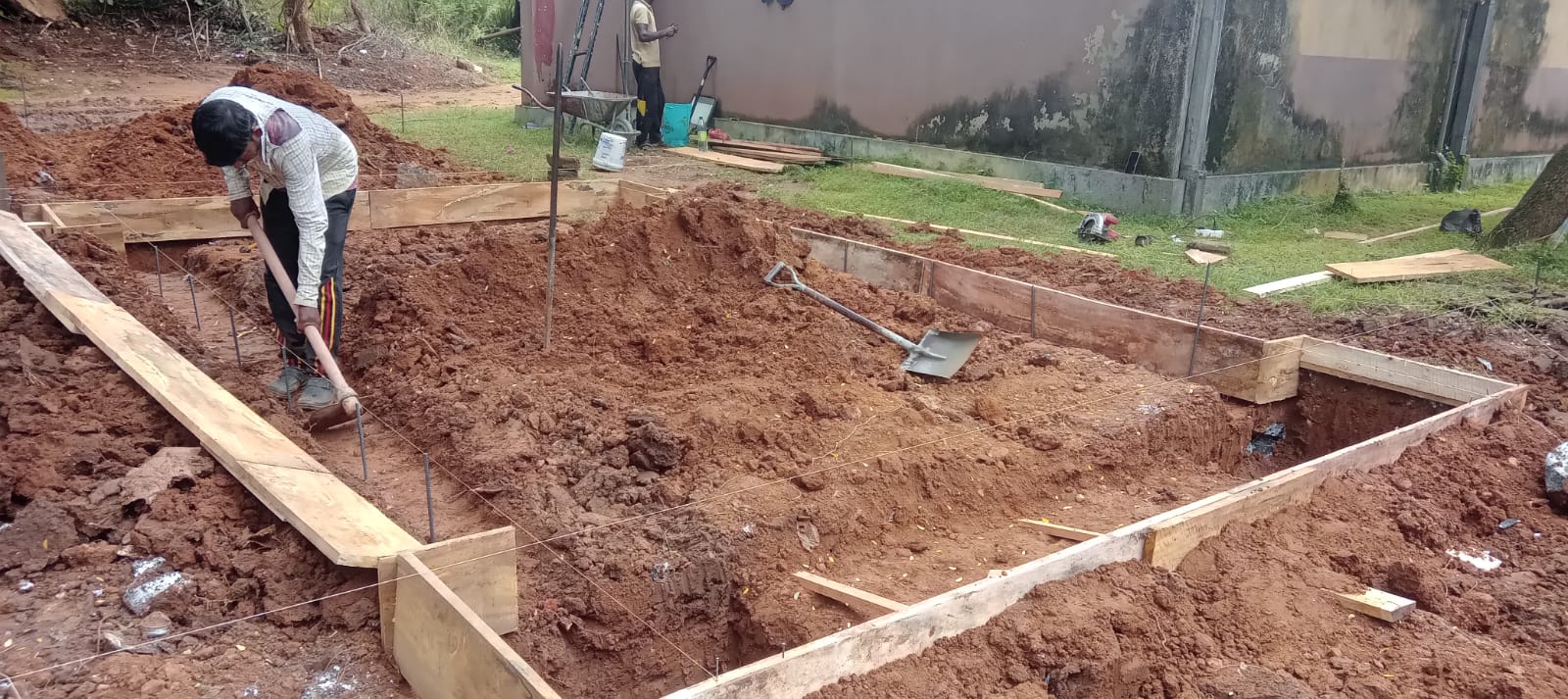

Can you include foundations and ramps?
Civil foundation and ramp work can be included in the project quotation. If you use your own contractor, civil drawings and supervision can be arranged as part of the agreed scope.
Can the software be customised?
Software customisation can be discussed around your weighing process, records and reporting needs. Describe any specific requirements in your enquiry so they can be included in the proposal.
How much does a weighbridge cost?
The price depends on capacity, platform size, equipment, site conditions and the civil work required. Send us your requirements for a quotation based on your project.
What about warranty and maintenance?
Warranty coverage and exclusions are set out in your quotation. Preventive maintenance arrangements can also be discussed to support continued operation.
Request a quotation
Let’s plan your weighbridge.
Choose a standard configuration or request a custom 10T–100T weighbridge. For custom options, enter the capacity and required platform length; the width is fixed at 3m. Add your load cell preference, deck type, cabin requirement and installation location.
